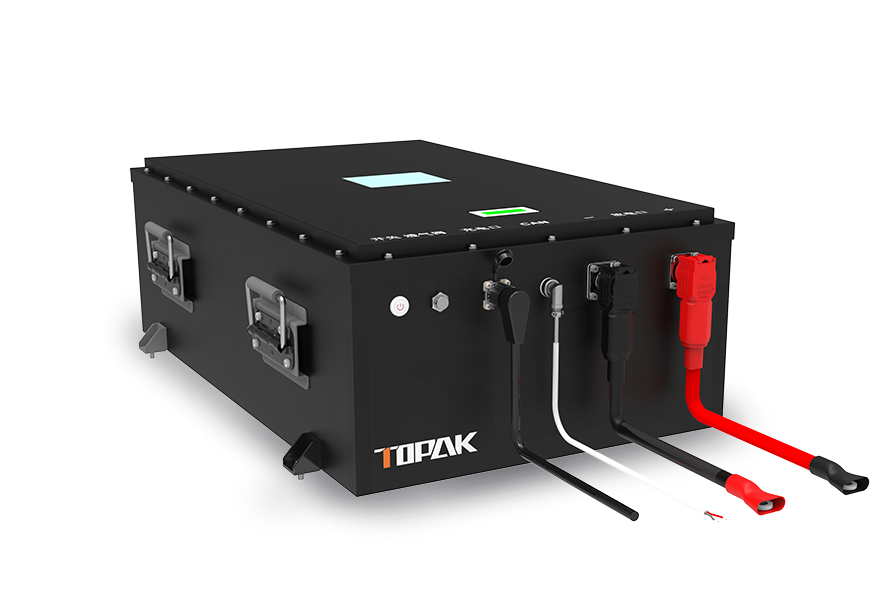

108.6V58Ah
| Specifications Nominal Voltage (V): | 76.8V |
| Nominal Capacity(Ah): | 81Ah |
| Rated Energy (Wh): | 6220Wh(6.22KWh) |
| Maximum Charging Voltage (V): | 87.6V |
| Maximum Charging Current (A): | 40A |
| Maximum Continuous Discharge Current(A): | 160A |
| Maximum Peak Discharge Current @30s (A): | 220A |
| Maximum Load Power (W): | 12288W |
| Discharge Cut-OffVoltage (v): | 52.8V |
| Cell Model: | 24S3P |
| Cell Brand: | IFP20100140A-27Ah |
| Cell Combination: | Guoxuan |
| Cycle Life: | 2500 cycles at room temperature 1C/1C(80%) |
| Protection Rating: | IP67 |
| Product Manual Number: | YF-05-000280 |
| Approximate Weight (kg): | About 60kg |
| Application Areas: | Yachts, bamboo rafts, go-karts |
